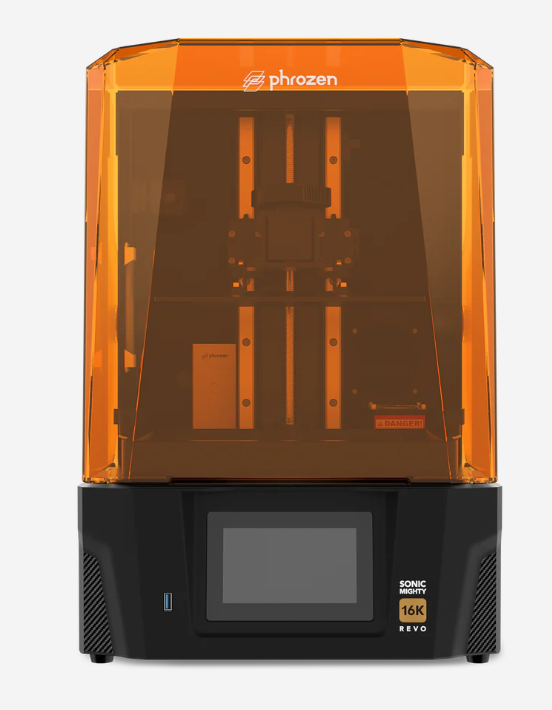

The Phrozen Sonic Mighty Revo 16K is a resin-based (MSLA) 3D printer, designed for professionals, industrial designers, and labs who require a combination of effective print volume and edge resolution.

The printer offers high throughput, precise geometric accuracy, and an array of smart sensors to streamline the production process and reduce waste.

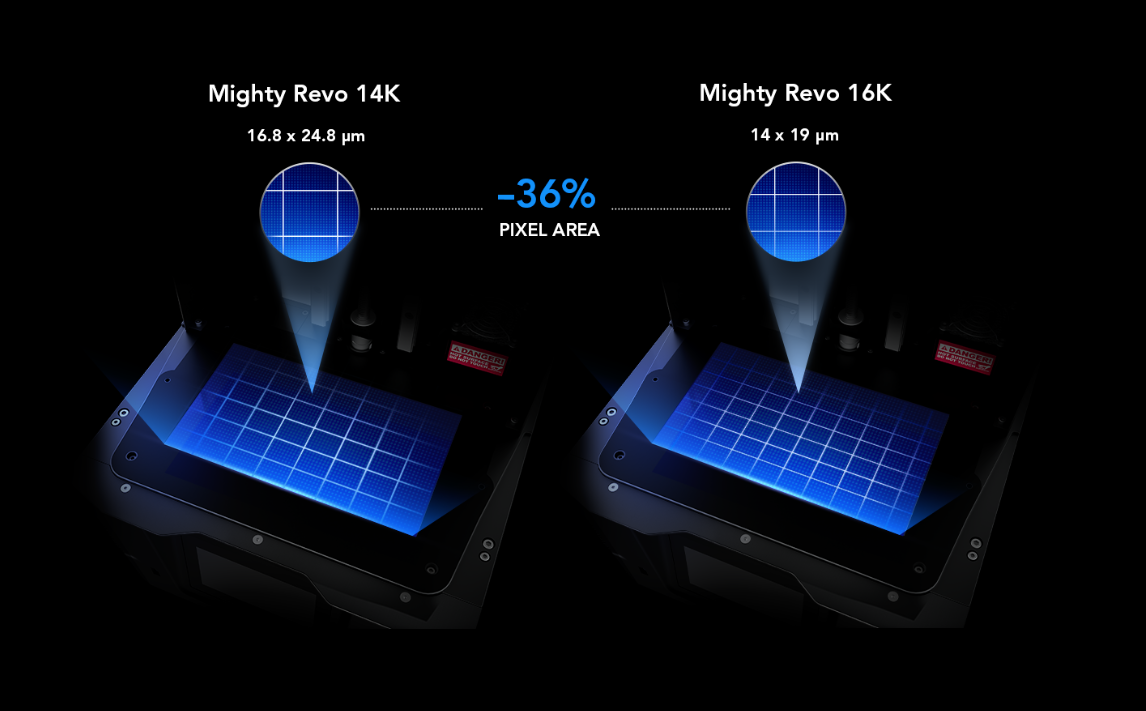

16K screen resolution: The advanced LCD screen provides an extremely high level of detail and sharpness at the edges of the model (X/Y resolution), which increases surface quality and almost completely eliminates the need for post-processing.

Auto-Leveling System: The device is equipped with an automatic calibration mechanism that resets the printing platform before starting work, ensuring high repeatability and saving manual setup time.

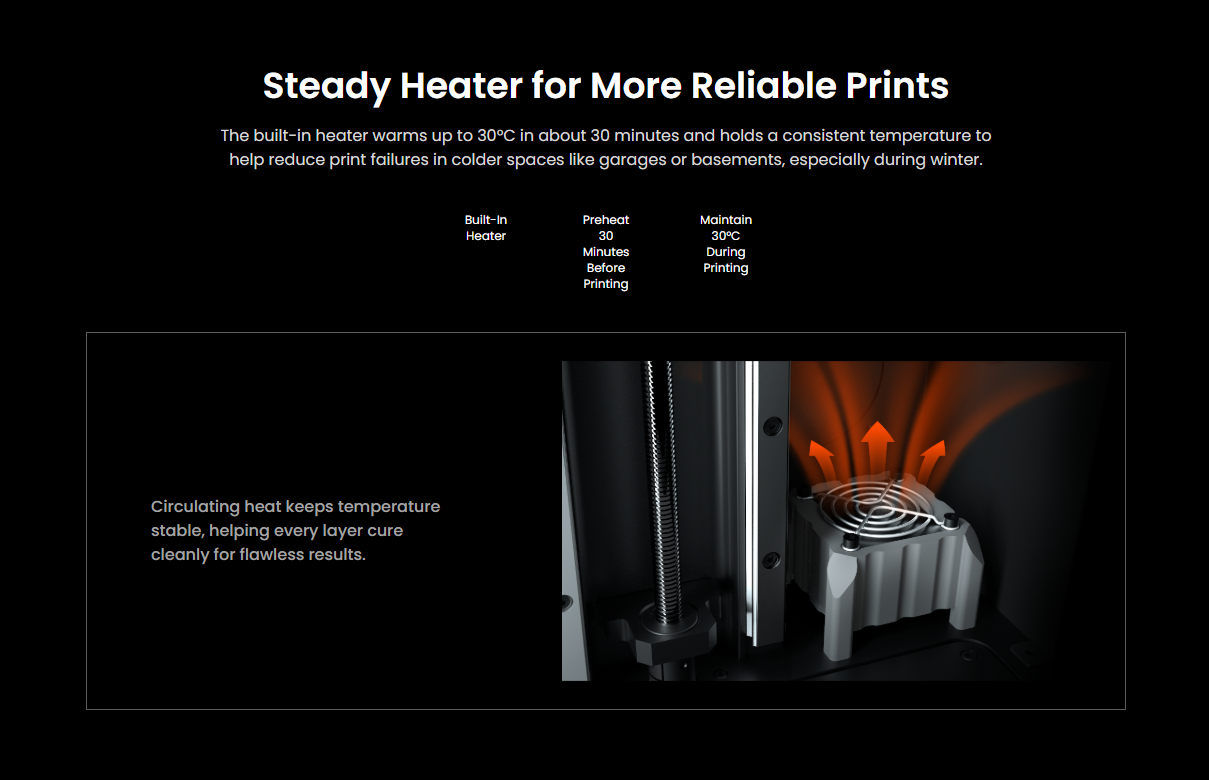

Built-in climate control and heating: The printer features an internal heating element that maintains a constant and optimal resin temperature. This feature is essential for maintaining proper material viscosity and preventing failures resulting from environmental temperature changes.

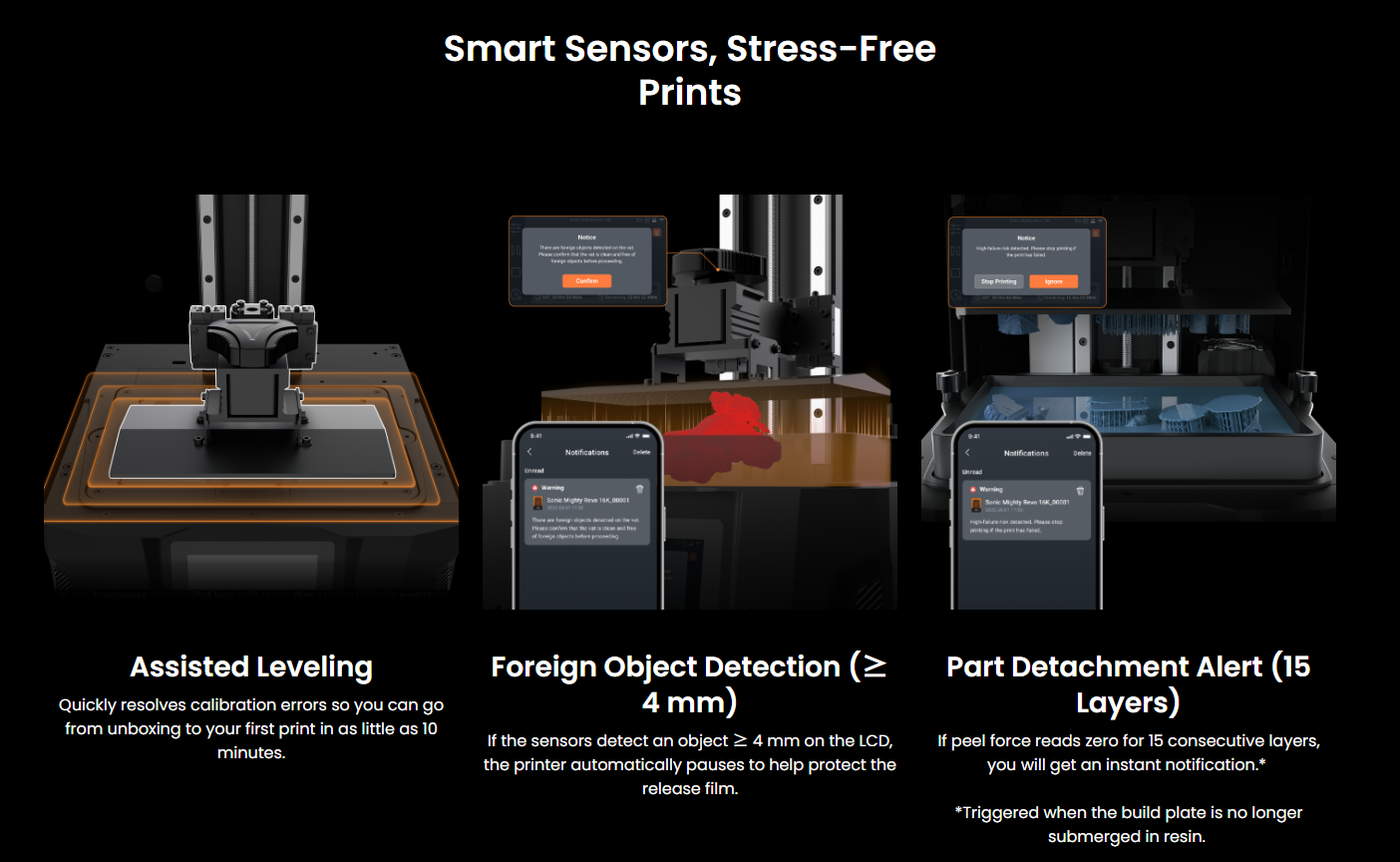

Smart sensors for system protection:

Foreign object detection (Piezoelectric Sensor): Prevents damage to the LCD screen in the event of solid residue in the resin tank.

Detection of printing failures: The system detects disconnections or failed adhesions and automatically stops the job to prevent material waste.

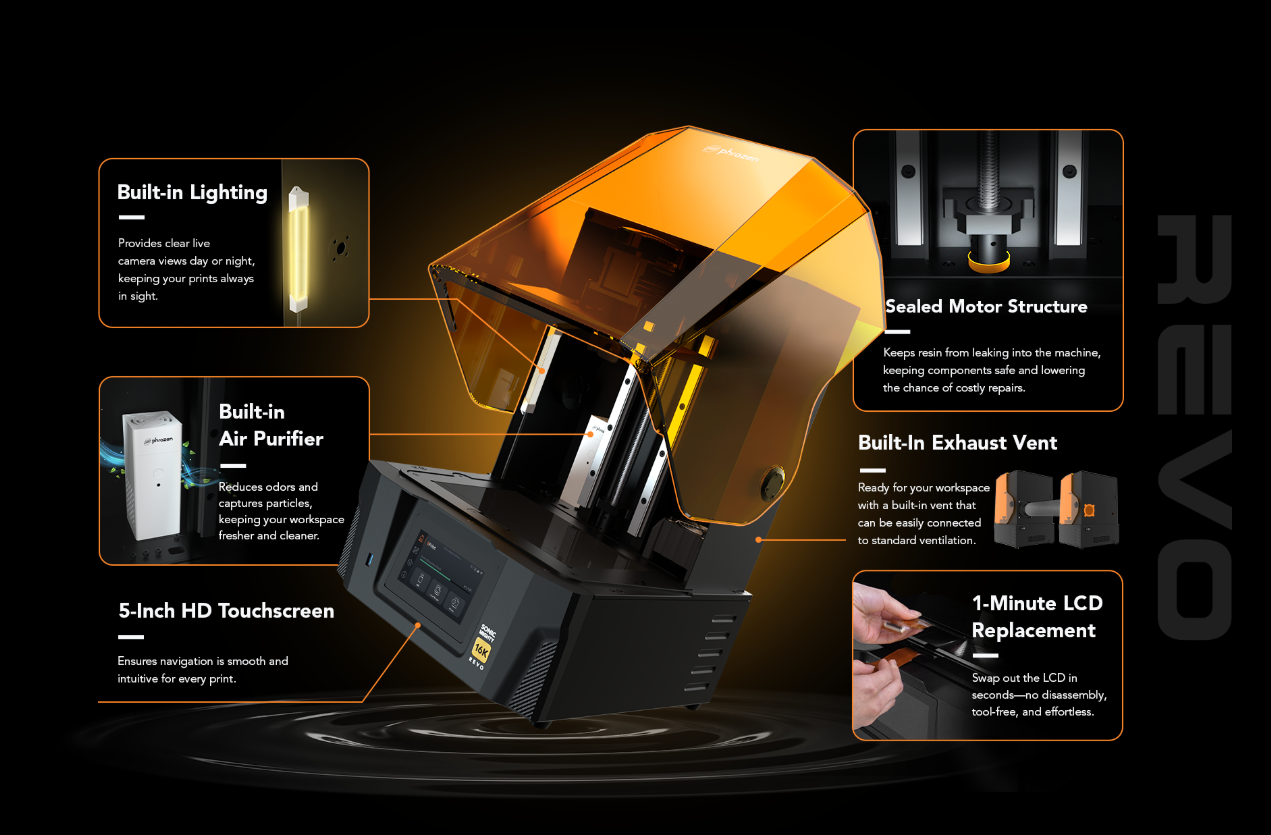

Protected work environment: Built-in air filtration system that includes an activated carbon filter, which significantly reduces the emission of fumes and resin odors in the work space.

When purchasing a printer only at Beyond3d:

• An open digital course and unlimited upgrades.
• 1-on-1 training
• Discounts on package deals – printer + washing and UV + alcohol + printing materials

Printing characteristics

• X/Y axis resolution: 16.8 microns x 24.8 microns (16.8 µm x 24.8 µm)

• Layer thickness: 0.01 – 0.30 mm

• Light source: Linear projection LED module (ParaLED Matrix 3.0)

• Maximum printing speed: up to 70 mm per hour (depending on resin type and layer height)

• Print volume: 22.3 x 12.6 x 23.5 cm

• Z-axis: Dual linear rails with reinforced lead screw for maximum stability and prevention of Z-wobble.

• Print platform: Laser-engraved rough surface to improve adhesion of the first layers.

• Resin Bath (Vat): Durable metal structure with a separation sheet (FEP/PFA) adapted for easy separation.

• Calibration mechanism: Fully automatic calibration (Auto-Leveling) – without the need for manual intervention, based on load cells at 3 fixed points.

• Climate control (resin heating): A built-in internal heating element that maintains a constant temperature of approximately 30°C in the work basin, to maintain optimal viscosity of the material and prevent temperature failures.

• Residue Detection Sensor: A piezoelectric sensor that detects solid objects or print residue in the bath, stopping the printer before damage occurs to the LCD screen.

• Print Failure Detection: Real-time monitoring and detection of disconnections or structural failures, with the option to automatically stop and send an alert to the Phrozen Go app.

• Air filtration: Built-in air suction and purification system that includes a replaceable activated carbon filter.

• Control screen: 5-inch IPS touch screen

• Connectivity: Wi-Fi, Ethernet (wired network) and USB connection

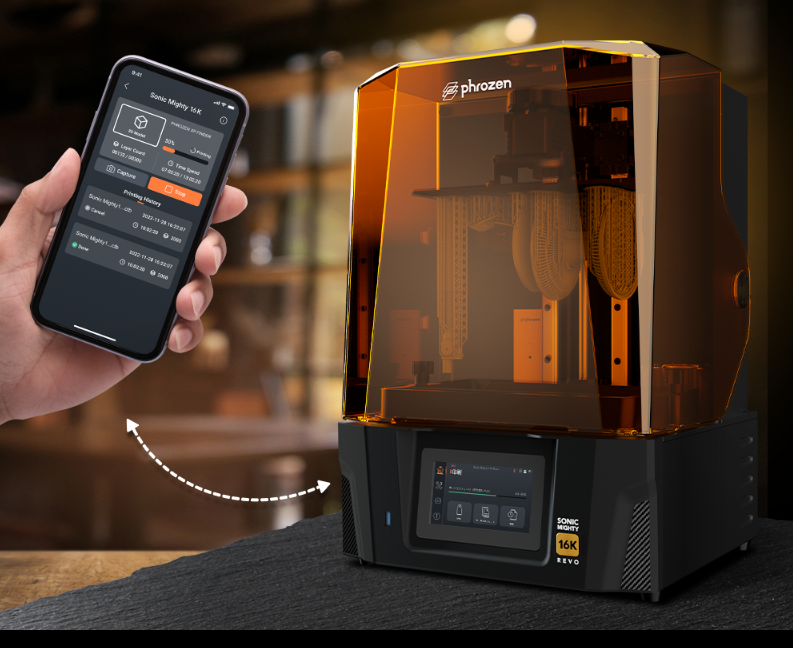

• Internal camera: Built-in camera for remote monitoring, tracking printing status, and producing time-lapse videos via the mobile app.

• Supported Slicers: CHITUBOX, Lychee Slicer, Phrozen DS Slicer

• Printer dimensions: 35.3 x 32.5 x 49 cm

• Printer weight: approximately 18 kg

• Power consumption: AC 100-240V, 50/60Hz, max 240W

It is recommended to purchase additional equipment. If not available, we highly recommend a Phrozen3D device that combines alcohol rinsing and UV .

The warranty is one year, excluding consumables such as FEP, screen, and leaks from improper use .

The lifespan of a screen is about 2000 hours of use when used correctly. (It can be more or less than 2000, depending on the user)

FEP is replaced after losing tension between 3-6 months of continuous use (with improper use, it can be as little as a minute).

We provide instructions on how to properly care for it to last a long time.
